On mountain bike trails there are usually boardwalk sections. These are a lot of fun to ride on, and essential for the Mountain bike trails I am placing in my scene.
This is a perfect opportunity to use RailClone from iToo Software. It is an amazing plugin, very powerful. Even though I find it difficult to understand & manage this kind of modeling, I really wanted to push myself and try to get some basic parametric models going!

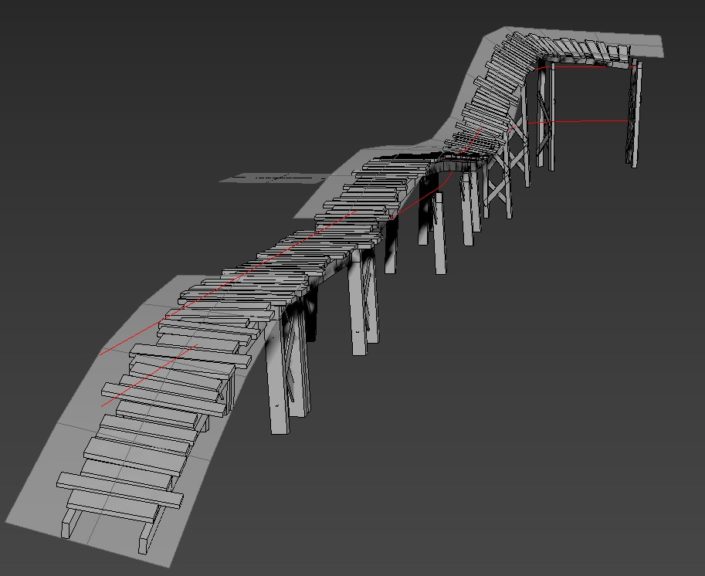

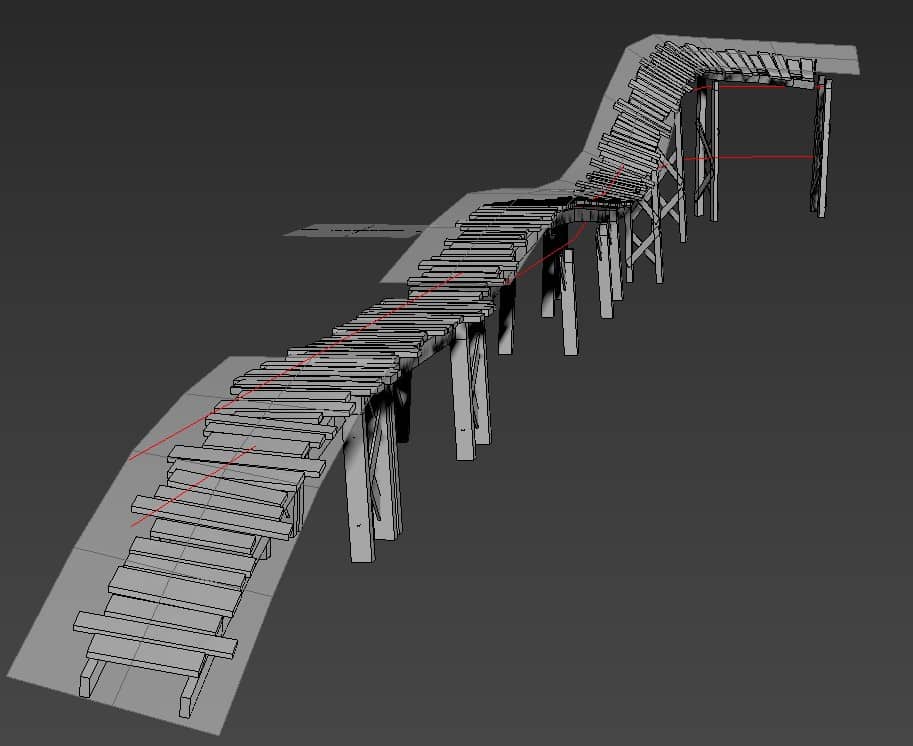

Played with the 2 different array generators. The Railclone style in the screenshot is made up of multiple generators.

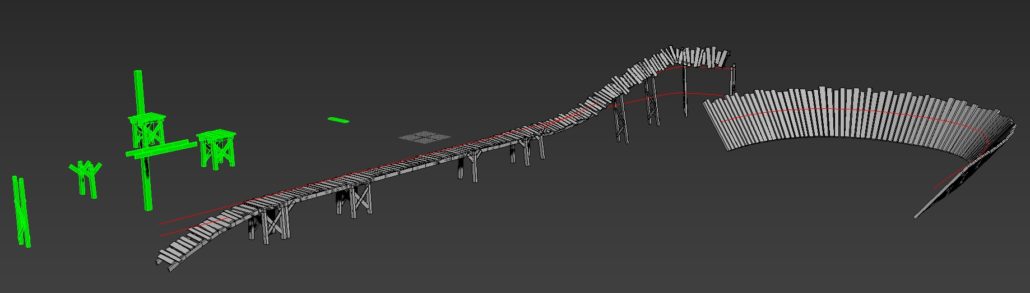

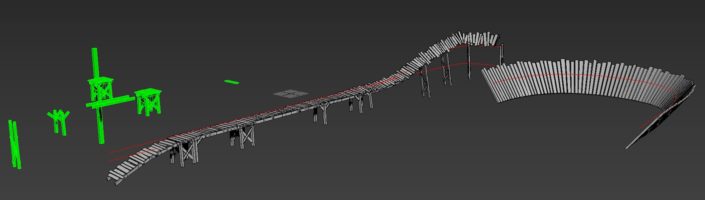

The circular berm is 2d array.
The raised boards & supports are 1d arrays. The raised boards follow a spline but the deform in the Z axis with a low-poly surface that is non-renderable. That way I can easily give them twists etc.
At the moment I have 2 splines doing the work but and it gets pretty rough beneath the planks, with the support beams not touching them or intersecting badly. I hope to tidy that a bit and maybe have it all run by the 1 spline.

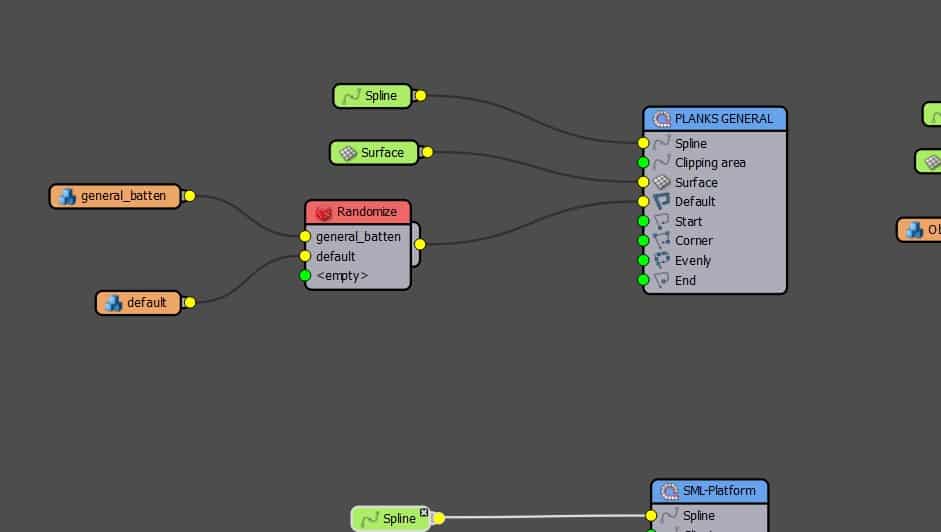

The planks themselves are just one box that is randomly being transformed & in scale & rotation. The uneven spaces between each plank are achieved by having a dummy segment that is randomly scaled and placed along the spline.
If anyone has any suggestions, please let me know.
Thanks.
Welcome and Good Luck!
I like this a lot! Cool #RailClone setup 😉
I’d loved to help but I don’t know this plugin ! Good luck
Thanks Moussa! I going to need it 😀
I sometimes find myself hitting brain overload, and begin changing settings at random to see if it does what I want it to do! :/ Railclone is awesome but tricky for some of us who do not have much of a mathematical mind. The guys at iToo software though, have probably the best support, tutorial & documentation.
Hope you go well Moussa. 🙂
Interesting but I couldn’t be in ! I use only Blender and this plugin works with max.
Hope you’re going well too Brendan 😉 Thanks
